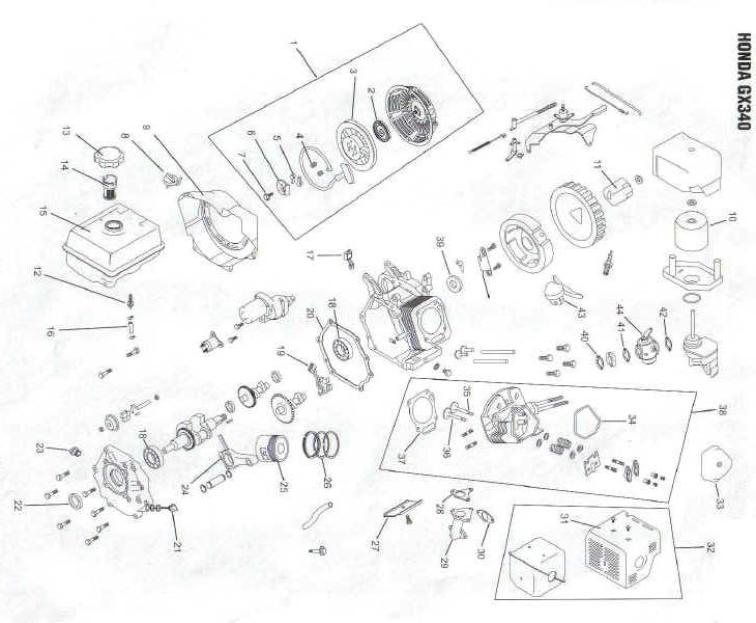

Honda GX340 parts diagram
|
|
This section is under construction
Please check again soon as parts are being added on a regular basis.
|
|
|
|
|
|
|
|
Starter Assembly 28400-ZE3-W01ZA
|
|
|
|
Starter Spring 28442-ZE2-W01
|
|
|
|
|
|
|
Starter Pawl Spring 28443-ZE2-W01
|
|
|
|
Starter Pawl 28442-ZE2-W01
|
|
|
|
|
|
|
|
|
|
Fuel Tank Joint 16955-ZE1-000
|
|
|
|
|
|
|
Fuel Strainer 17672-ZE2-W01
|
|
|
|
Fuel Tank 17510-ZE3-010ZA
|
|
|
|
|
|
|
|
|
|
Sump Cover Gasket 11381-ZE3-801
|
|
|
|
Oil Cap WIth Indicator 15600-735-003
|
|
|
|
Oil Seal PTO End 91201-ZE3-004
|
|
|
|
|
|
|
Connecting Rod (Std.) 13200-ZE3-020
|
|
|
|
Piston (Std.) 13101-ZE3-W00
|
|
|
|
Ring Set (Std.) 13010-ZE3-003
|
|
|
|
Muffler Pipe 18330-ZH9-N00
|
|
|
|
|
|
|
Muffler Pipe Gasket 18333-ZE3-800
|
|
|
|
Muffler Shield 18320-ZE3-W01
|
|
|
|
Muffler Assembly 18310-ZE2-W61
|
|
|
|
Rocker Cover Gasket 12391-ZE2-020
|
|
|
|
Intake Valve 14711-ZE3-000
|
|
|
|
Exhaust Valve 14721-ZE3-000
|
|
|
|
Cylinder Head Gasket 12251-ZE3-000
|
|
|
|
|
|
|
Oil Seal Magneto End 91201-ZE3-004
|
|
|
|
Carb Insulator Gasket 16223-ZE3-W00
|
|
|
|
Carb Gasket 16221-ZF6-800
|
|
|
|
Air Cleaner Housing Gasket 16220-ZA0-702
|
|
|
|
Ignition Coil 30500-ZE2-023
|
|
|
|
|
|
|
|
|
